FNIRSI® LC1020E High Precision Handheld Digital Bridge LCR ESR Tester

FNIRSI® LC1020E High Precision Handheld Digital Bridge LCR ESR Tester

FNIRSI® LC1020E High-Precision Handheld LCR Meter is a portable and intelligent tool for testing electronic components, ideal for engineers, technicians, and hobbyists. It supports L/Q, C/D, and R/D measurements with series/parallel models, and features a 2.8-inch TFT color display.


Features:

  • High-Precision Measurement with 4.5-Digit Resolution
    Achieves up to ±0.05% basic accuracy, offering 10× improved precision for professional-grade measurements.

  • Wide Parameter Support
    Measures L/C/R/Z values with automatic mode switching, and displays X/D/Q/θ/ESR as secondary parameters for comprehensive component analysis.

  • Smart Auto Component Identification
    Automatically recognizes R/L/C components and switches modes instantly — ensuring fast and efficient testing with minimal manual input.

  • Multi-Frequency & Test Voltage Selection
    Supports 5 test frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
    Offers 3 RMS test levels: 0.1V, 0.3V, 0.6V — providing precise control across different testing scenarios.

  • Sorting & Comparison Function
    Set nominal values and tolerances (0.1%–99.9%) for automatic pass/fail judgment, with audio-visual prompts for fast batch testing and quality control.

  • Internal Bias Voltage
    Built-in bias voltage stabilizes readings and enhances measurement accuracy for sensitive components.

  • Dual Test Ports: 3-Terminal & 5-Terminal (4-Wire Kelvin)
    Ensures both ease of use and maximum accuracy by minimizing lead resistance error.

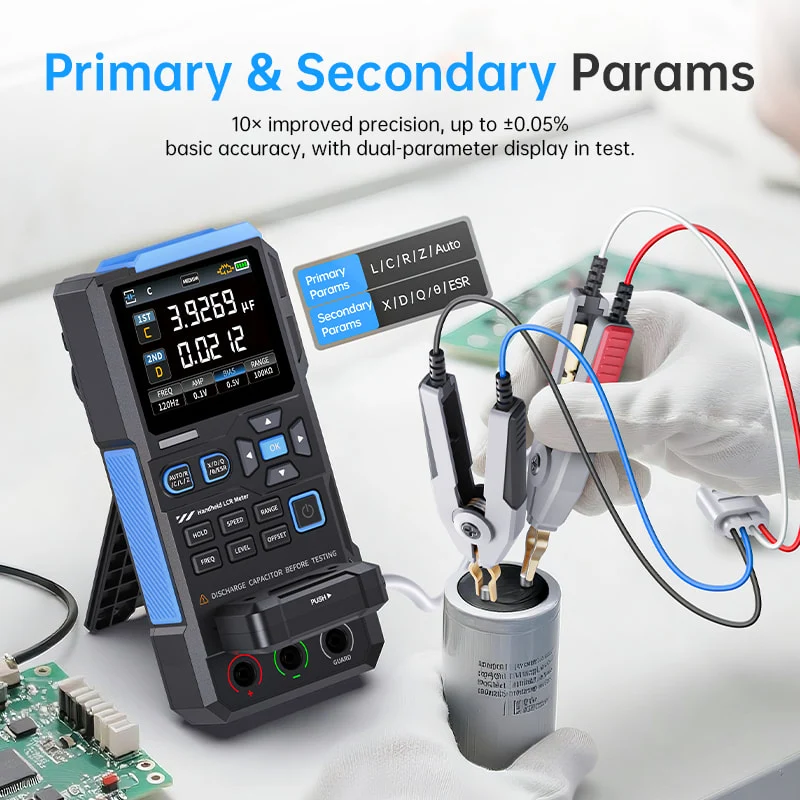

  • Dual-Parameter Display on 2.8" TFT Screen
    Clearly shows both main and secondary parameters in real time — easy to read anytime, anywhere.

  • Open & Short Calibration
    Calibrate test fixtures and eliminate system errors for accurate and repeatable results.

  • Data Hold & Logging Mode
    Short press to hold reading, long press to enter logging mode — with categorized statistics on pass/fail results for improved test efficiency.

  • Compact & Rechargeable Design
    Lightweight, portable body powered by a 3.7V 3000mAh lithium battery, perfect for lab, production line, and field use.

Specifications:

General Parameters:

Model
LC1020E
Test Frequency
100Hz, 120Hz, 1KHz, 10KHz, 100KHz
Basic Accuracy
0.3%
Display
2.8-inch TFT LCD display
Display Digits
Main Parameter: 4.5 digits
Secondary Parameter: 4.5 digits
Measurement Parameters
Main Parameters: AUTO/R/C/L/Z
Secondary Parameters: X/D/Q/θ/ESR
Measurement Range
L: 0-100H
C: 0-100mF
R: 0-10M
Internal Bias
0.0V, 0.5V
Test Level
0.1V, 0.3V, 0.6V
Calibration Functions
Open circuit calibration, Short circuit calibration
Comparison Function
Used to calculate the relative error between the component measurement value and the nominal value, displayed as a percentage, and provides filtering results. Nominal values and tolerance can be set, with tolerance range adjustable from 0.1% to 99.9%
Function Record
Checks if the measured component data meets the set nominal value and tolerance, recording the number of successful and failed measurements
Test Terminal Configuration
Three-terminal, Five-terminal
Output Impedance
100Ω
Communication Interface
USB-TypeC (Virtual serial port)
Others
Language settings, Screen brightness, Sound settings, Auto power-off, Calibration settings, System information


Measurement Accuracy:

Capacitance (C)

Range: 1mF-100mF
Accuracy:
100Hz: 5% ± 5 digits
1KHz: 3% ± 5 digits
10KHz: /
100KHz: /
Range: 1uF-1mF
Accuracy:
100Hz: 1% ± 4 digits
1KHz: 0.5% ± 5 digits
10KHz: 2% ± 5 digits
100KHz: 3% ± 4 digits
Range: 1nF-1uF
Accuracy: 100Hz: /
1KHz: 0.3% ± 2 digits
10KHz: 0.4% ± 2 digits
100KHz: 1% ± 4 digits
Range: 1pF-1nF
Accuracy:
100Hz: /
1KHz: 2% ± 2 digits
10KHz: 1.5% ± 2 digits
100KHz: 2% ± 4 digits


Inductance (L)

Range: 1H-100H
Accuracy:
100Hz: 2% ± 5 digits
1KHz: 2% ± 5 digits
10KHz: /
100KHz: /
Range: 1mH-1H
Accuracy:
100Hz: 0.4% ± 5 digits
1KHz: 0.3% ± 2 digits
10KHz: 0.4% ± 3 digits
100KHz: 2.5% ± 5 digits
Range: 10uH-1mH
Accuracy:
100Hz: 3% ± 5 digits
1KHz: 0.5% ± 4 digits
10KHz: 0.5% ± 3 digits
100KHz: 1.5% ± 5 digits
Range: 1uH-10uH
Accuracy:
100Hz: /
1KHz: 2% ± 5 digits
10KHz: 2% ± 5 digits
100KHz: 4% ± 5 digits


Resistance (R)

Range: 1MΩ-10MΩ
Accuracy:
100Hz: 5% ± 4 digits
1KHz: 3% ± 3 digits
10KHz: /
100KHz: /
Range: 1KΩ-1MΩ
Accuracy:
100Hz: 0.4% ± 4 digits
1KHz: 0.2% ± 2 digits
10KHz: 0.3% ± 3 digits
100KHz: 0.6% ± 5 digits
Range: 1Ω-1KΩ
Accuracy:
100Hz: 1.5% ± 4 digits
1KHz: 0.3% ± 2 digits
10KHz: 0.3% ± 3 digits
100KHz: 0.6% ± 5 digits
Range: 10mΩ-1Ω
Accuracy:
100Hz: 4% ± 4 digits
1KHz: 2% ± 5 digits
10KHz: 2% ± 5 digits
100KHz: 5% ± 5 digits


Package List:

◉ LC1020E LCR Meter *1
◉ Data Cable *1
◉ Shorting Plate *1
◉ Kelvin Test Clip *1
◉ Test Leads (Black *1 + Red *1)
◉ User Manual *1
